OTL-120 Coffee Roaster

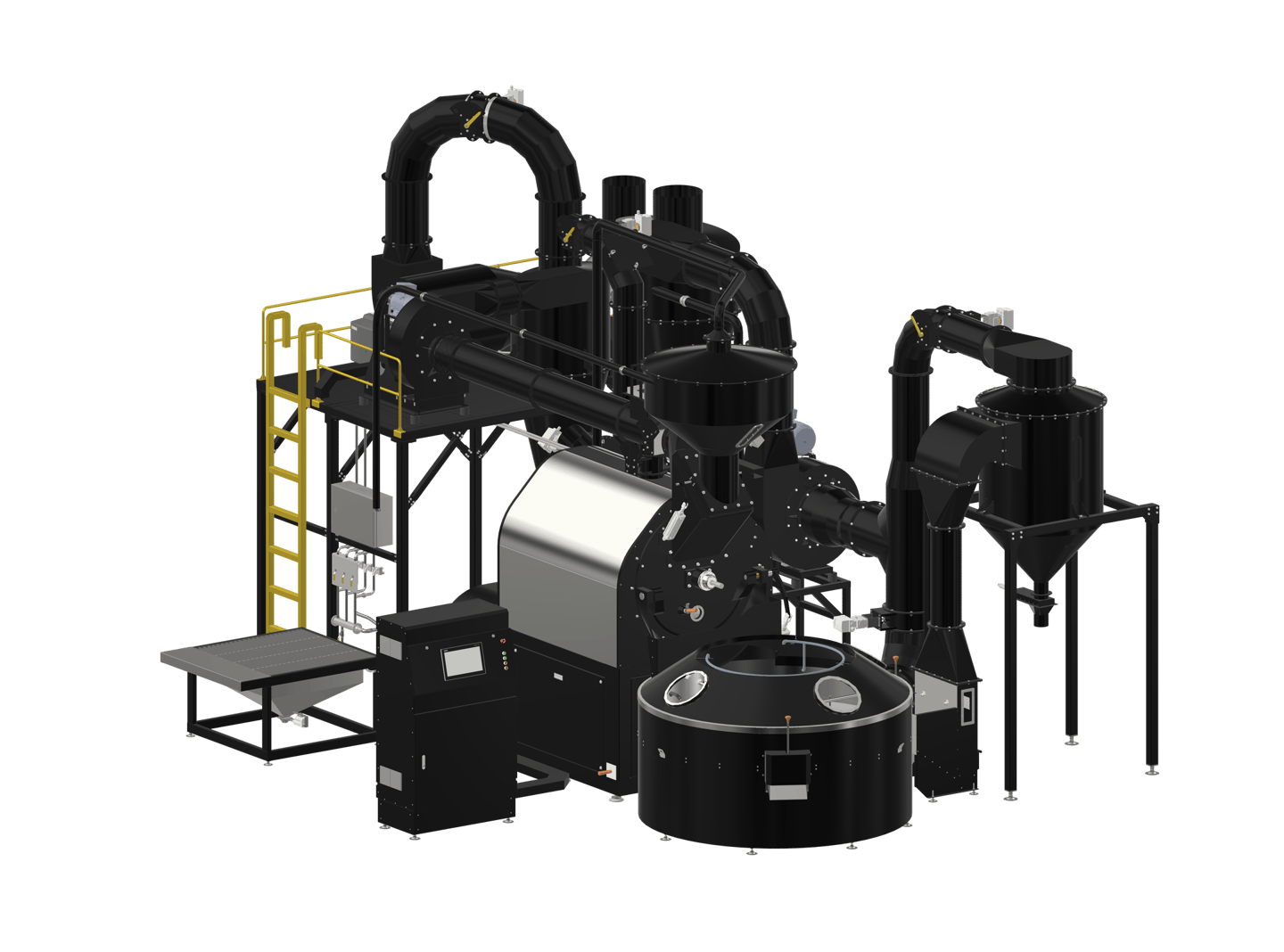

Full Circulation Industrial Roasting System - OTL 120kg Coffee Roaster

Overview

The OTL 120kg Coffee Roaster is a pinnacle of industrial coffee roasting technology. Designed with an advanced full-circulation airflow system, it offers unmatched efficiency, precision, and environmental responsibility. This model is engineered to meet the demands of large-scale production facilities while maintaining superior control over the roasting process.

Specifications

• Capacity (Kg/hr): 240 - 480

• Batch capacity (Kg/batch): 60 - 120

• Burner Capacity (Kw): 350

• Electricity Consumption (KWh): 19.5

• Power Supply: 3PH 380 - 400V 50/60Hz

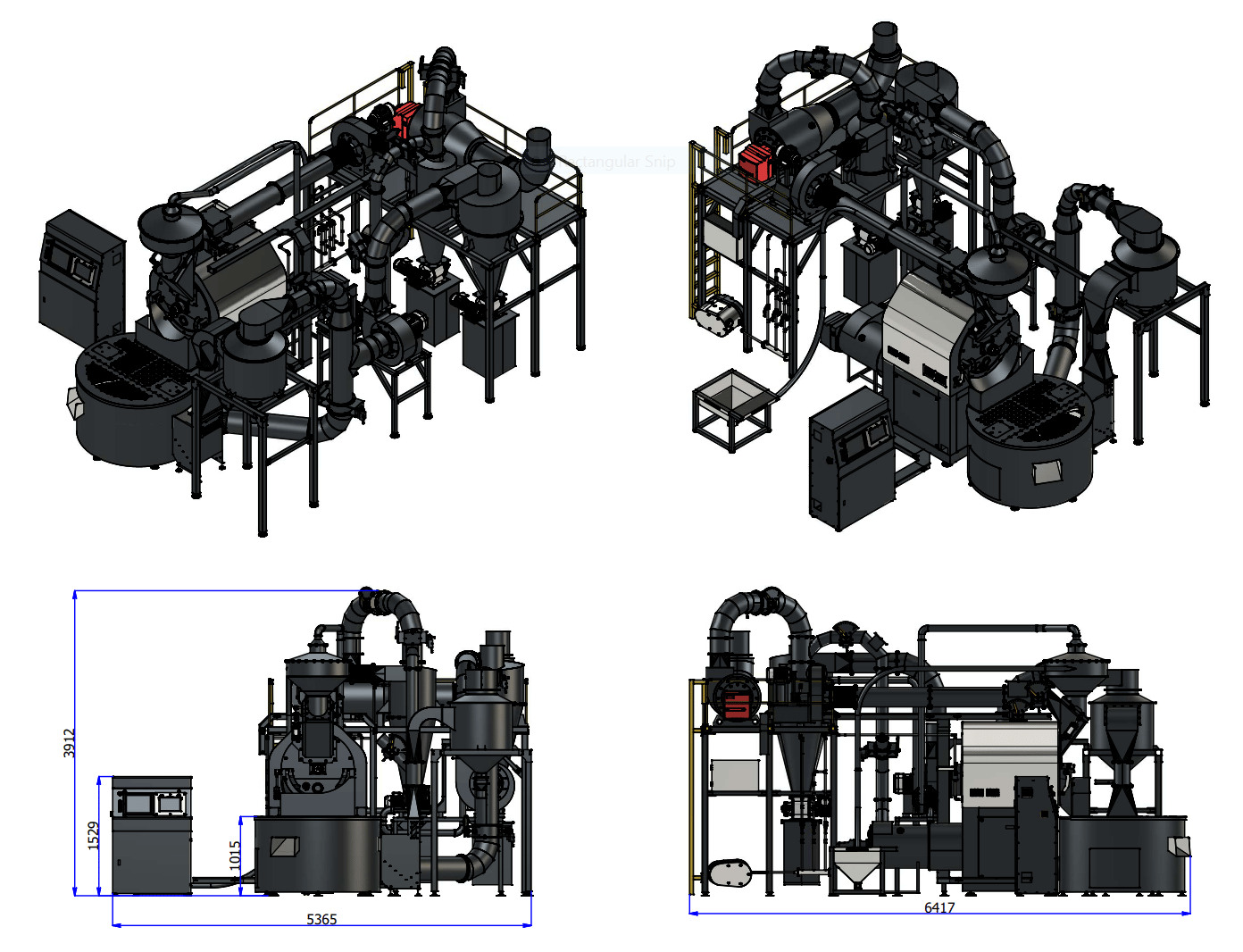

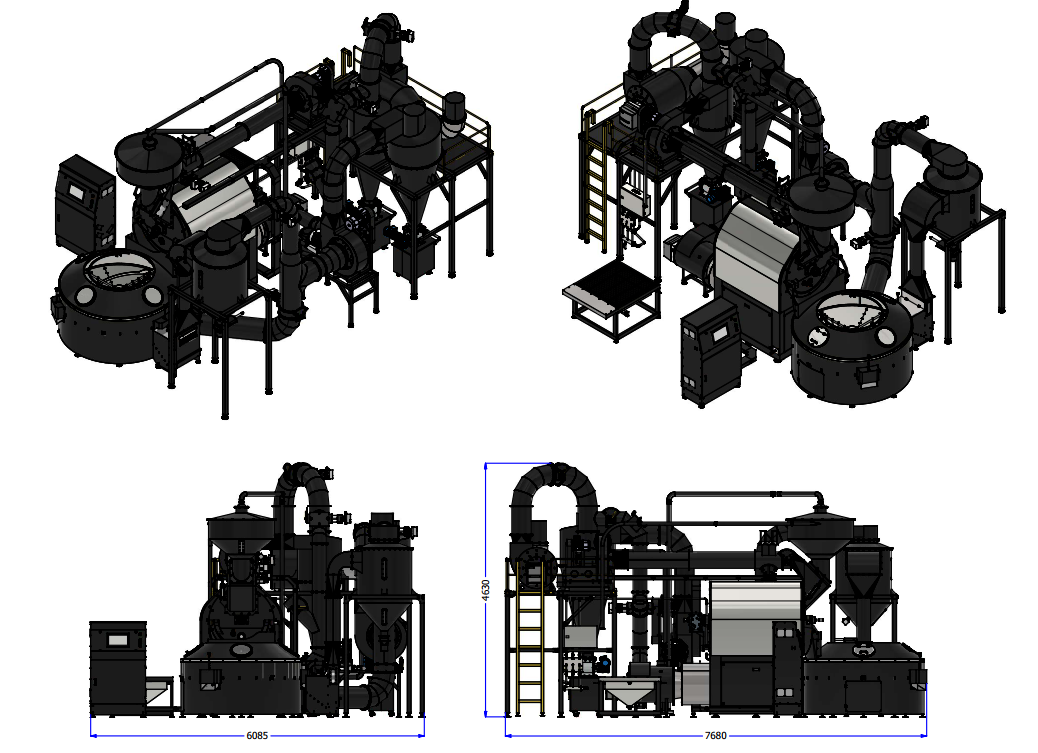

• Dimensions (L x W x H, mm): 6700 x 5500 x 4300

Features:

1. Full Circulation Airflow System:

   • Utilizes a closed-loop system to minimize energy waste.

   • Ensures consistent heat distribution for uniform roasting.

   • Reduces environmental impact by recycling exhaust air.

2. Advanced Temperature Control:

   • Monitors seven critical points: Bean Temperature, Exhaust Temperature, Cooling Temperature, Burner Air Temperature, Chamber Temperature, Cyclone Temperature, and Afterburner Temperature.

   • Enables precise adjustments to optimize roast profiles.

3. High-Efficiency Afterburner:

   • Integrated afterburner ensures clean emissions.

   • Exceeds industry standards for environmental compliance.

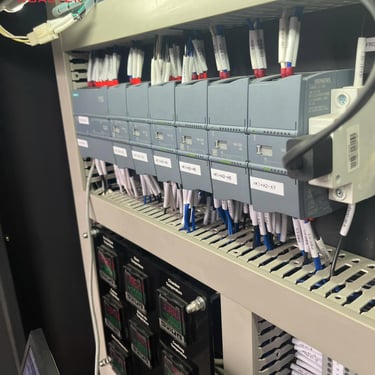

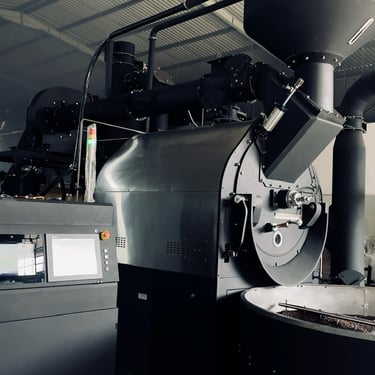

4. Touchscreen Control Panel:

   • User-friendly interface with real-time data monitoring.

   • Programmable roasting profiles for consistent results across batches.

5. Robust Construction:

   • Made with high-grade materials to ensure durability.

   • Modular design simplifies maintenance and upgrades.

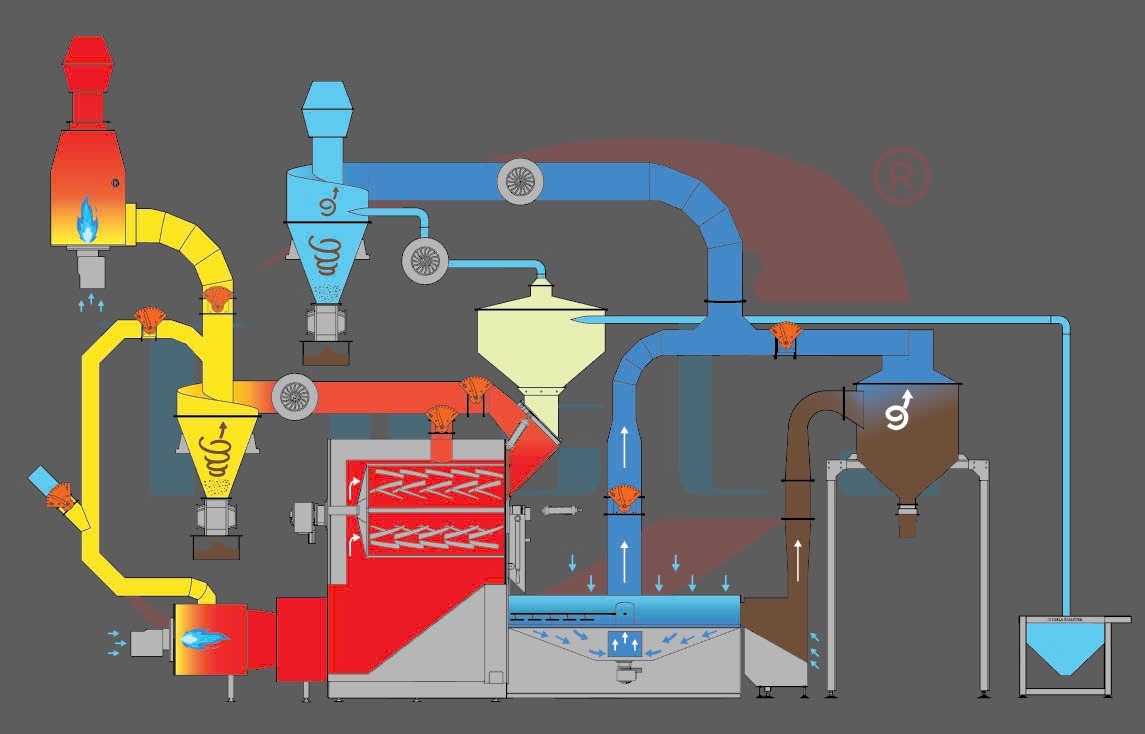

System Diagram Explanation:

• Bean Temp: Tracks the coffee beans' core temperature for precision roasting.

• Exhaust Temp: Manages airflow and ensures the system remains clean and efficient.

• Cooling Temp: Rapidly cools roasted beans to preserve flavor and prevent over-roasting.

• Burner Air Temp & Chamber Temp: Ensures optimal heat delivery and consistency.

• Cyclone Temp: Collects chaff and ensures efficient air circulation.

• Afterburner Temp: Final stage for cleaning exhaust gases and reducing pollutants.

Applications:

• Ideal for industrial-scale coffee production facilities.

• Suitable for roasters focusing on sustainable practices and high-quality output.

Benefits:

• Reduces energy consumption by up to 30% with its innovative design.

• Maintains product quality at scale with precise and consistent roasting.

• Supports environmental goals with low emissions and energy-efficient technology.
